The Tigo Cloud Connect Advanced Kit with TAP - Indoor (MPN: 344-00000-52) is a comprehensive PV monitoring and control gateway kit that enables Tigo Energy Intelligence platform connectivity, rapid shutdown compliance, and advanced module-level analytics for residential and commercial solar installations.

Product Description

This indoor-rated kit includes the CCA gateway, TAP rapid shutdown transmitter, power supply, and cabling to provide cloud connectivity for up to 100 TS4 optimizers while meeting NEC 690.12 arc-fault and rapid shutdown requirements. The TAP transmitter enables wireless communication with Tigo TS4-A-F module adapters for module-level shutdown and monitoring.

Key Features

Cloud connectivity: Real-time monitoring and control via Tigo Energy Intelligence platform (free basic access).
Rapid shutdown compliance: TAP transmitter signals TS4-A-F adapters for NEC 690.12 shutdown within 30 seconds.
Module-level insights: Production, IV curves, soiling detection, and fault alerts for up to 100 optimizers.
Indoor rated: Compact DIN-rail or wall-mount design for electrical cabinets.
Multi-protocol support: Modbus TCP/RTU, SunSpec, and inverter communication protocols.
Scalable coverage: Up to 500m wireless range with TAP transmitter.

Kit Contents

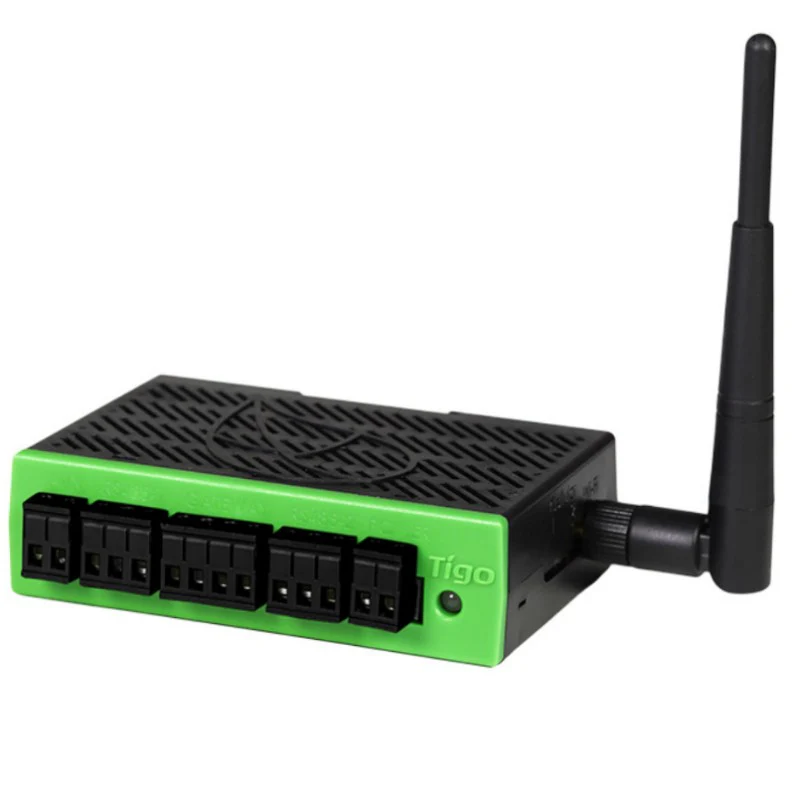

1 × Cloud Connect Advanced (CCA) gateway (indoor)

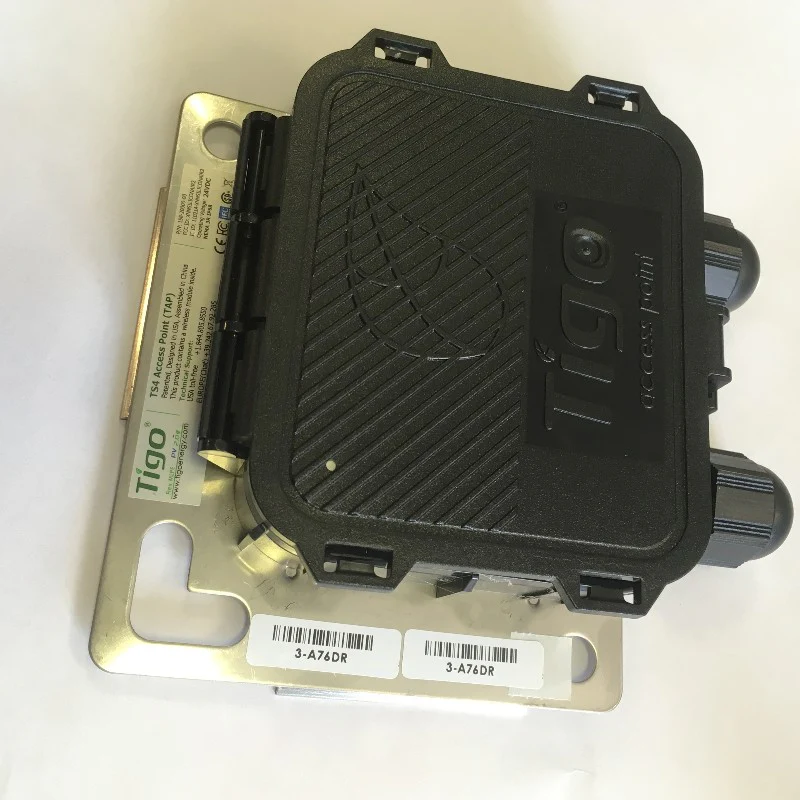

1 × TAP transmitter (Rapid Shutdown)
1 × 24V DC power supply
RS485 communication cables and adapters
Antenna extension and mounting hardware
Quick install guide and commissioning QR code

Technical Details

MPN: 344-00000-52.
Optimizer capacity: Up to 100 TS4 optimizers (TAP coverage).
Connectivity: Ethernet, WiFi 2.4GHz, 4G LTE (SIM optional), RS485 Modbus.
Power supply: 24V DC / 1.25A (included PSU).
TAP wireless: Proprietary Tigo RF (sub-GHz), up to 500m range.
Rapid shutdown: PLR (Power Line Communication) compliant, <30s shutdown.
Operating temperature: 0°C to +60°C (indoor).

Physical Specifications

CCA dimensions (W × H × D): 160 × 110 × 35 mm.
TAP transmitter: 115 × 85 × 35 mm.
CCA weight: 0.4 kg.
Mounting: DIN rail or wall bracket (indoor electrical enclosure).
Enclosure rating: IP20 (indoor).
LED indicators: Power, network, optimizer, RS485 status.

System & Application Notes

Optimizer compatibility: Requires TS4 optimizers with TAP firmware (TS4-A-F, TS4-A-O, etc.).
Inverter integration: Works with all major string inverters via Modbus or SunSpec.
Installation: Indoor mounting near router or inverter; TAP placed centrally for optimizer coverage.
Advanced features: Module-level monitoring, string-level IV curves, fleet management, API access.
Compliance: NEC 690.12, UL 1741, IEC 61701 (salt mist), IEC 62716 (ammonia).
Warranty: 5 years hardware; lifetime cloud platform access.
