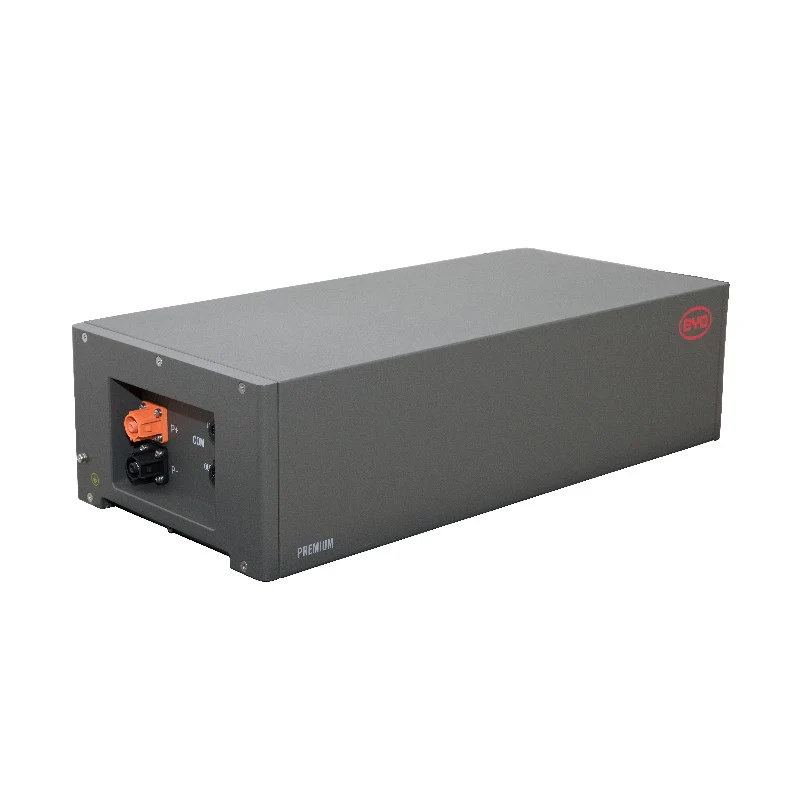

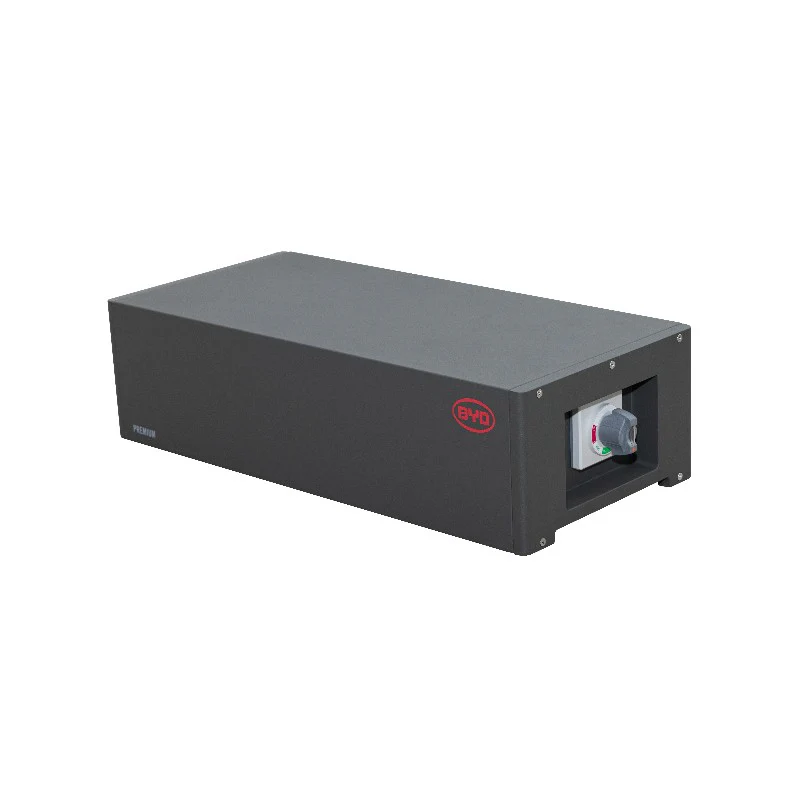

BYD Battery Box Premium LVS PDU Battery Base and Control Unit
BYD Battery-Box Premium LVS Battery Base and Control Unit (BYD-LVS-PDU) — Essential base & power distribution unit for the BYD LVS series | Houses the main control electronics, BMS master, fuses & communication | Required for every LVS battery tower | Supports stacking up to 6 × 4.0 kWh modules per tower | Enables parallel towers up to 256 kWh total | Integrated DC breaker & over-current protection | Plug-and-play with LVS modules | Compatible with Victron, SMA, Fronius, Growatt & many hybrid inverters | 10-year warranty | Ideal for residential & small commercial solar storage systems
Connects LVS 4.0 kWh modules (stacked 1–6 high) to inverter & provides full system protection & communication. Enables modular expansion – add towers in parallel for larger capacities. Works seamlessly with most 48V hybrid inverters. No external cables between modules – simple plug-in stacking.
The BYD Battery-Box Premium LVS PDU (BYD-LVS-PDU) is the mandatory base and control unit for any Battery-Box Premium LVS installation. It houses the master BMS (Battery Management System), main DC fuses, circuit breaker, communication interface and power distribution – serving as the central hub for one complete battery tower. Every LVS tower (1–6 modules stacked vertically) requires exactly one PDU at the bottom.
The PDU enables safe, reliable operation of the LVS system by managing cell balancing, over/under-voltage protection, over-current protection, temperature monitoring & communication with the inverter via CAN/RS485. Plug-and-play stacking means no inter-module cables – modules simply connect vertically into the PDU base. Parallel multiple towers (up to 64) for total capacities from 4 kWh to 256 kWh. Fully compatible with leading hybrid inverters: Victron (MultiPlus/Quattro/Cerbo), SMA (Sunny Boy Storage), Fronius (GEN24), Growatt, Solis & many others. 10-year warranty covers the entire LVS system when properly installed.
What Makes the BYD LVS PDU Special?
- One Per Tower Required — Houses master BMS, fuses, breaker & communication – essential foundation for every LVS stack.
- Plug-and-Play Stacking — No cables between modules – modules simply stack vertically onto PDU for easy expansion.
- Integrated Protection — Built-in DC breaker, over-current fuses & multi-layer BMS – safe & reliable operation.
- Scalable to 256 kWh — Parallel up to 64 towers – grow from small home storage to large commercial systems.
- Broad Inverter Compatibility — Seamless integration with Victron, SMA, Fronius, Growatt & many 48V hybrid inverters.
- 10-Year Warranty — Covers the entire LVS system (including PDU) – long-term peace of mind.
- Compact & Modular — Low-profile base design – easy to install in garages, utility rooms or indoor enclosures.
Key Features
Technical Specifications (LVS PDU)
| Specification | Value |
|---|---|
| MPN / SKU | BYD-LVS-PDU |
| System Voltage | 48 V DC nominal |
| Max Charge/Discharge Current | 100 A per tower (0.5C) |
| Peak Discharge Current | 200 A (3 s) |
| Modules per Tower | 1–6 × LVS 4.0 kWh |
| Max Parallel Towers | 64 (256 kWh total) |
| Protection Features | Integrated DC breaker, over-current fuses, BMS communication |
| Communication | CAN/RS485 (to inverter) |
| Operating Temperature | Charge: 0 °C to +50 °C / Discharge: -10 °C to +50 °C |
| Dimensions (H × W × D) | Approx. 650 × 585 × 298 mm (with base & stacked modules) |
| Weight (PDU only) | Approx. 12–15 kg |
| Warranty | 10 years (60% capacity retention for complete LVS system) |
| Certifications | CE, UN38.3, IEC 62619 |
What's in the Box
✅ One PDU required per battery tower (supports 1–6 × LVS 4.0 kWh modules). Modules sold separately – stack vertically for 4–24 kWh per tower. Parallel towers up to 256 kWh total. Compatible with Victron, SMA, Fronius, Growatt & many hybrid inverters. Installation by qualified electrician required – 48V DC systems need specialist knowledge. 10-year warranty – register online with BYD for full coverage.
