EcoFlow Power Insight Home Energy Monitor
The EcoFlow Power Insight Home Energy Monitor is an advanced CT clamp-based energy monitoring system designed for real-time tracking of whole-home electricity consumption, solar generation, and grid import/export flows in Power Ocean hybrid inverter installations.
Product Description
This plug-and-play monitor uses non-invasive CT clamps to measure all electrical flows at the main consumer unit, providing precise data for tariff optimisation, zero-export control, and energy management. Fully integrated with the EcoFlow app and Power Ocean inverters, it enables dynamic export limiting and smart scheduling for UK time-of-use tariffs.
Key Features
- Whole-home monitoring: Tracks grid import/export, PV generation, and battery flows simultaneously.
- Zero-export compliance: Real-time dynamic export limiting for DNO G99 compliance without CT calibration.
- Multi-tariff support: Automatic recognition of Octopus Agile, Intelligent, Flux, and other dynamic tariffs.
- Wireless connectivity: 2.4GHz WiFi with local LAN fallback for reliable data transmission.
- Easy retrofit: Non-invasive CT clamps install in minutes without main supply isolation.
- Historical analytics: 1-minute resolution data with 10-year cloud storage and detailed consumption breakdowns.
Technical Details
- Accuracy: Class 0.5% (import/export), Class 1.0% (generation).
- CT clamps: 3x split-core (100A/400A single-phase or 100A/400A three-phase selectable).
- Measurement range: 0–100A per phase continuous (non-saturating).
- Sampling rate: 1Hz real-time, 1-minute aggregated data.
- Connectivity: 2.4GHz WiFi 802.11b/g/n, RS485 to inverter.
- Power supply: 230V AC (3.5VA max) or 12–48V DC option.
- Update interval: 5-second control loop, 1-minute app data.
- Compliance: G98/G99, IEC 62053-21, MCS E.1 certified.
Physical Specifications
- Control unit dimensions (W × D × H): 145 × 90 × 45mm.
- CT clamp dimensions: 50mm inner diameter (100A), 80mm (400A).
- CT clamp cable length: 2m standard (extendable to 10m).
- Total weight: 1.2kg complete kit.
- Protection rating: IP65 (CT clamps), IP20 (control unit).
- Operating temperature: −20°C to +60°C.
System & Application Notes
- Compatibility: Power Ocean single/three-phase inverters; firmware auto-detection.
- Installation: Single-phase: 2x CT clamps (grid + PV); Three-phase: 3x CT clamps. Professional Sparks recommended.
- Smart features: Peak shaving, forced battery charge during low tariffs, VPP signal integration.
- Applications: Export limitation, tariff arbitrage, solar self-consumption optimisation, energy dashboards.
- Warranty: 5 years hardware, lifetime cloud service (with active inverter warranty).

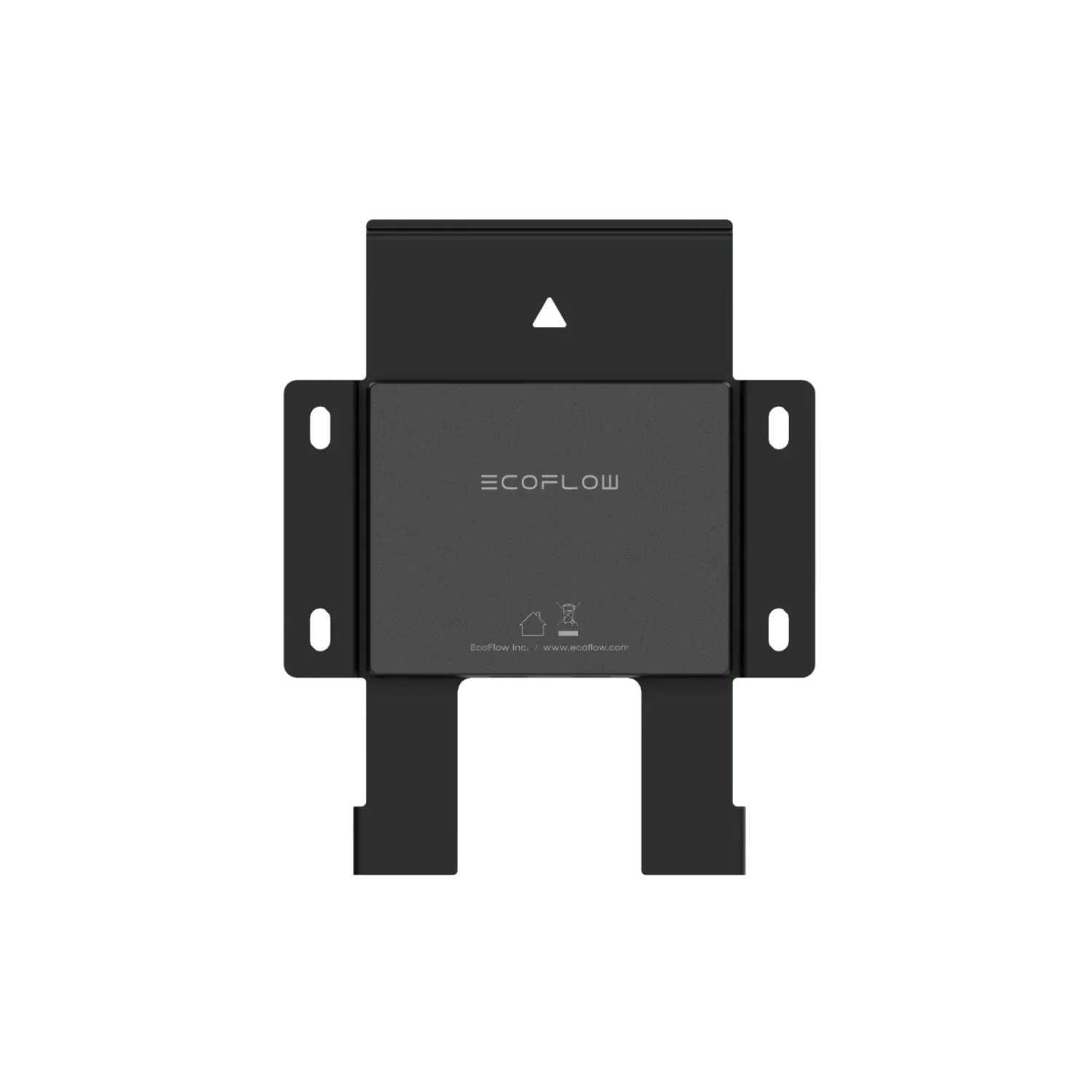

- Accessories: Extended CT cables, three-phase splitter box, DIN rail mount kit available.
