EHC SlimJim Electric Flow Boiler 7kW
EHC SlimJim Electric Flow Boiler 7kW
Product Description
The EHC SlimJim 7kW Electric Flow Boiler is a compact, fully-electric heating solution designed to deliver efficient and silent wet central heating where space is at a premium. This boiler is ideal for small homes, flats, or properties without a gas supply, offering simple integration with radiators, underfloor heating, or indirect hot water cylinders. Its minimalist design allows discreet installation in kitchen cupboards or other tight utility spaces, making it a popular choice for renovations and modern homes.
- 100% efficiency at point of use – no flue, condensate, or emissions
- Ultra-compact, slimline design (903 × 203 × 172 mm; ~11 kg)
- Virtually silent in operation (<15 dB)
- Suitable for central heating only, or for use with hot water cylinders (“S” or “Y” plan)
- Runs traditional radiators or wet underfloor heating
- Simple front control panel with temperature dial (30–80°C)
- Diagnostic indicators for heat/fault notification

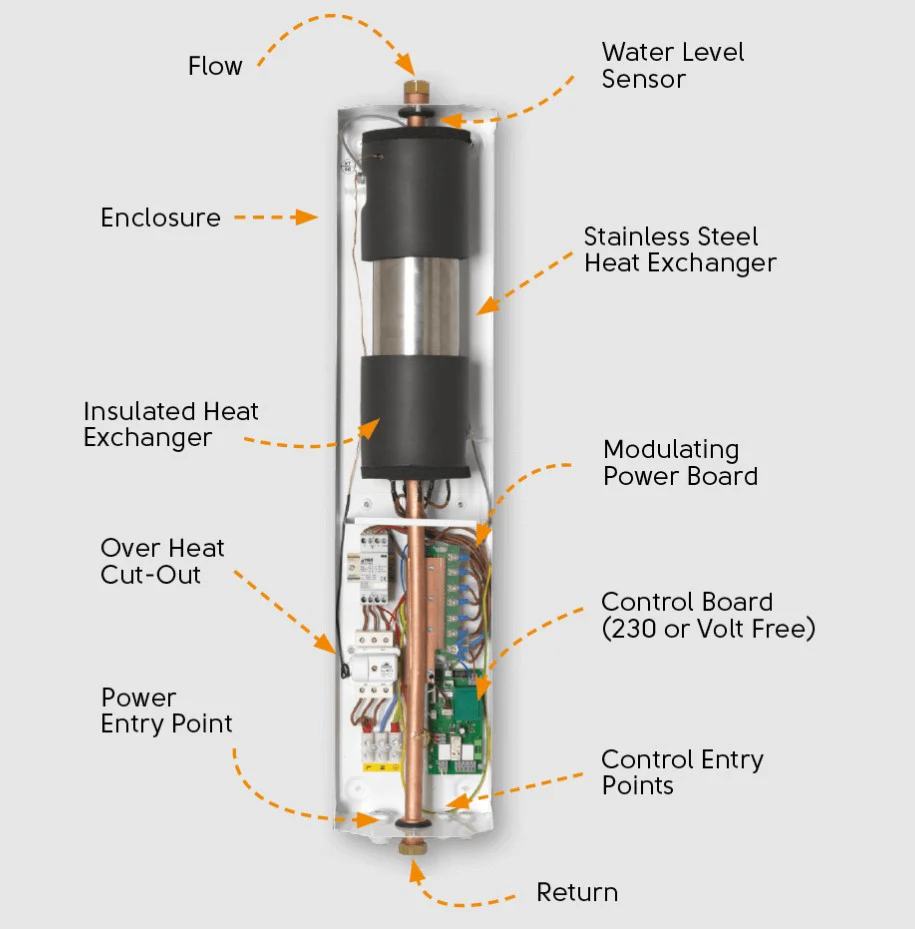

- Water Level Sensor protects against dry-running and heat exchanger damage
- Integrated, insulated stainless steel heat exchanger minimizes heat loss
- High temperature safety cut-out for overheat protection
- No annual service required
- 5-year warranty
Key Technical Specifications
| Model | EHCSJIM7KW |
| Output | 7 kW |
| Voltage / Phase | 230V, Single Phase |
| Current (Amps) | ~29 A |
| Dimensions (HxWxD) | 903 × 203 × 172 mm |
| Weight | ~11 kg |
| Temperature Range | 30°C – 80°C |
| Energy Efficiency | 100%, ErP D |
| Warranty | 5 years |
| Water Pressure | Suitable for open-vented and sealed systems |
| Noise Level | <15 dB (virtually silent) |
Applications
- Small to medium-sized homes or flats lacking a gas supply
- Renovations, extensions, studios, garden offices, or where space is limited
- Wet central heating with radiators or underfloor heating
- Compatible with indirect cylinders for domestic hot water
What's Included?
- EHC SlimJim 7kW Electric Flow Boiler (EHCSJIM7KW)
- User and installation manual
Why Choose EHC SlimJim 7kW Electric Flow Boiler?
- Zero local emissions and silent, maintenance-free operation
- Space-saving design for flexible, unobtrusive installation
- Robust safety controls and user-friendly operation
- 5-year manufacturer warranty for peace of mind
