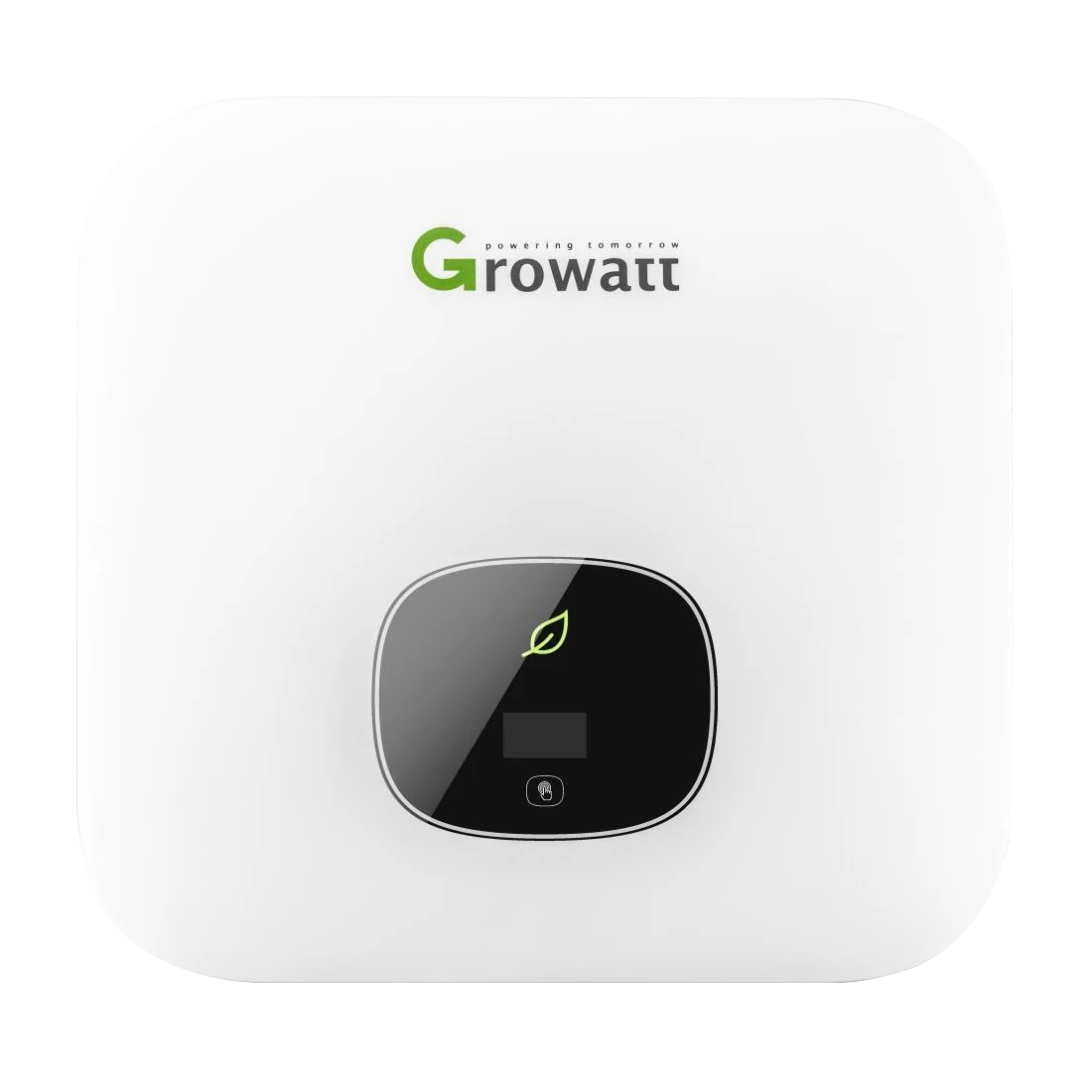

The Growatt MIN 5000TL-XH Dual MPPT Single Phase Inverter with DC Isolator (Part No: GROWATT-MIN5000-TL-XH) is a battery-ready, efficient single-phase hybrid inverter designed for residential solar PV systems, featuring dual MPPT trackers and integrated DC isolator for optimized energy harvest, battery compatibility, and safety.

The Growatt MIN TL-XH series is a battery-ready inverter that supports future expansion with Growatt ARK high-voltage batteries for energy storage. It offers maximum efficiency of 97.5% with a compact design, touch key, and OLED display for user-friendly operation. Optional AFCI and Type II SPD provide advanced protection, while the dual MPPT design allows flexible string configurations. The integrated DC isolator ensures safety and simplifies installation, making it ideal for residential systems aiming for self-consumption and energy independence.

Key Features

• Battery-ready: Compatible with Growatt ARK HV batteries for future storage integration.
• Dual MPPT trackers: Wide voltage range 80-550V for flexible string design.
• High efficiency: Maximum 97.5%, Euro efficiency 97%.
• Touch key & OLED display: Intuitive local control and monitoring.
• Integrated DC isolator: Enhances safety and simplifies installation.
• 24h self-consumption monitoring: Tracks energy use for better optimization.
• Smart grid features: Export limitation and grid compliance.
• Transformerless topology: Improves efficiency and reduces weight.

Technical Specifications

• Model: GROWATT-MIN5000-TL-XH – MIN 5000TL-XH Dual MPPT Battery Ready Inverter.
• Rated AC power output: 5000 W.
• Maximum AC apparent power: 5000 VA.
• Maximum DC power: 7000 W.
• MPPT voltage range: 80V-550V.
• Startup voltage: 80 V.
• Maximum input voltage: 550 V.
• Maximum DC current: 13.5 A per MPPT.
• DC inputs: 2 (MC4 connectors).
• Efficiency (max): 97.5%.
• Euro efficiency: 97%.
• Topology: Transformerless.
• Protection rating: IP65.
• Certifications: IEC62109, CE, VDE0126-1-1, AS4777, etc.

Dimensions & Weights

• Width: 375 mm.
• Depth: 160 mm.
• Height: 350 mm.
• Weight: 10.8 kg.

System & Application Notes

• Ideal for residential PV systems with 12-16 panels, battery-ready for future expansion.
• Compatible with Growatt ARK HV batteries and high-efficiency solar modules.
• Suitable for grid-tie applications with export limitation and self-consumption monitoring.
• Supports monitoring via Growatt ShineLink or app.
• Installation by qualified solar professionals following Growatt guidelines and local regulations.
• Warranty: 10 years standard.
