The Polypipe PB00401 UFCH Valve Actuator is a normally closed electrothermal actuator designed to open and close heating circuits on Polypipe underfloor heating manifolds based on heat demand, enabling individual room temperature control for improved energy efficiency.

Product Description

The Polypipe PB00401 Valve Actuator is an electrothermal device that controls the flow in underfloor heating systems by opening or closing valves in response to thermostat signals. It uses a PTC resistor-heated wax element and compression spring for reliable operation. Normally closed, it opens when powered and features a first-open function for construction phase use. The actuator includes a built-in indicator for power and valve status, ensuring easy monitoring and maintenance-free performance.

Key Features

• Normally closed (NC): Opens when powered, with first-open function for initial use.
• Low power consumption: 1 W operating power.
• Snap-on installation: Simple 360° positioning with valve adapter system.
• Function indicator: All-around display shows power on/off and valve open/closed.
• High safety: 100% protection against leaky valves, surge protection, and TUV certified.
• Compact and quiet: Minimal operational noise and maintenance-free.
• IP54 rated: Suitable for various environments.

Technical Specifications

• Model: PB00401 – UFCH Valve Actuator.
• Operating voltage: 230 V AC (±10%) 50/60 Hz.
• Maximum inrush current: < 550 mA during 100 ms max.
• Operating power: 1 W.
• Stroke: 4.0 mm.
• Actuating force: 100 N (+10%).
• Opening/closing time: ~3.5 minutes.
• Fluid temperature: 0 to +100°C.
• Ambient temperature: 0°C to +60°C.
• Storage temperature: -25°C to +60°C.
• Degree of protection: IP54.
• Protection class: II.
• CE conformity: EN 60730.
• Surge protection: EN 60730-1, 2.5 kV.
• Housing material: Polyamide, light grey (RAL 7035).
• Connecting cable: 2 x 0.75 mm² PVC, light grey, 1 meter.

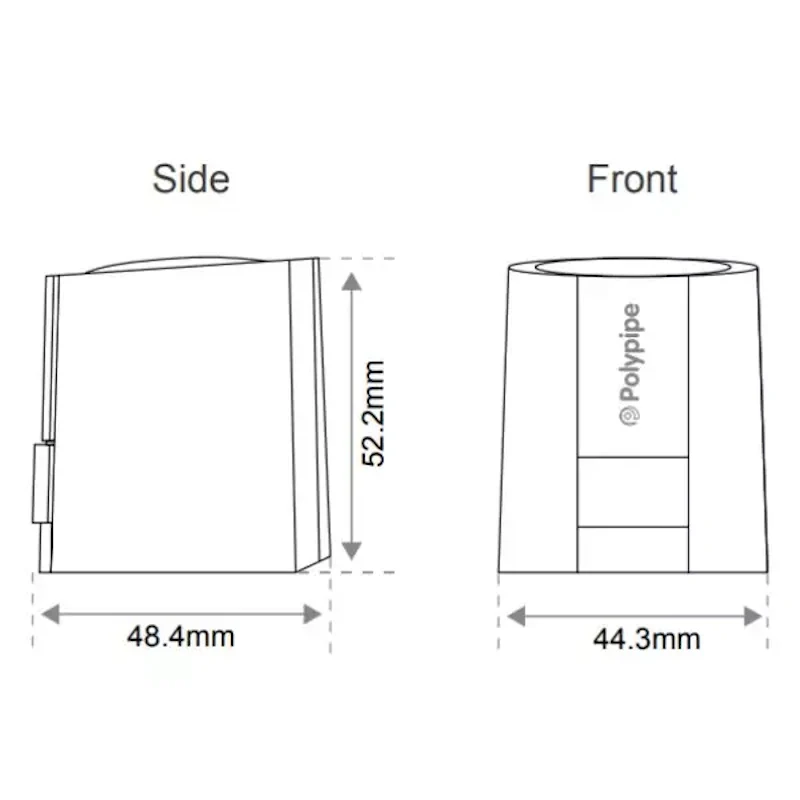

Dimensions & Weights

• Weight: 100 g with connecting cable.

System & Application Notes

• Ideal for Polypipe underfloor heating manifolds to control individual circuits based on thermostat demands.
• Compatible with valve-adapter-system for simple integration.
• Installation: Snap-on to adaptor after screwing adaptor onto valve; connect to 230V supply; audible click confirms secure fit.
• Use recommended cables: NYM 1.5 mm² or NYIF 1.5 mm².
• Professional installation recommended; TUV certified for safety.
