SolarEdge Synergy Secondary Unit with Rapid Shutdown Device (RSD)
SolarEdge Synergy Secondary Unit with Rapid Shutdown Device (RSD)

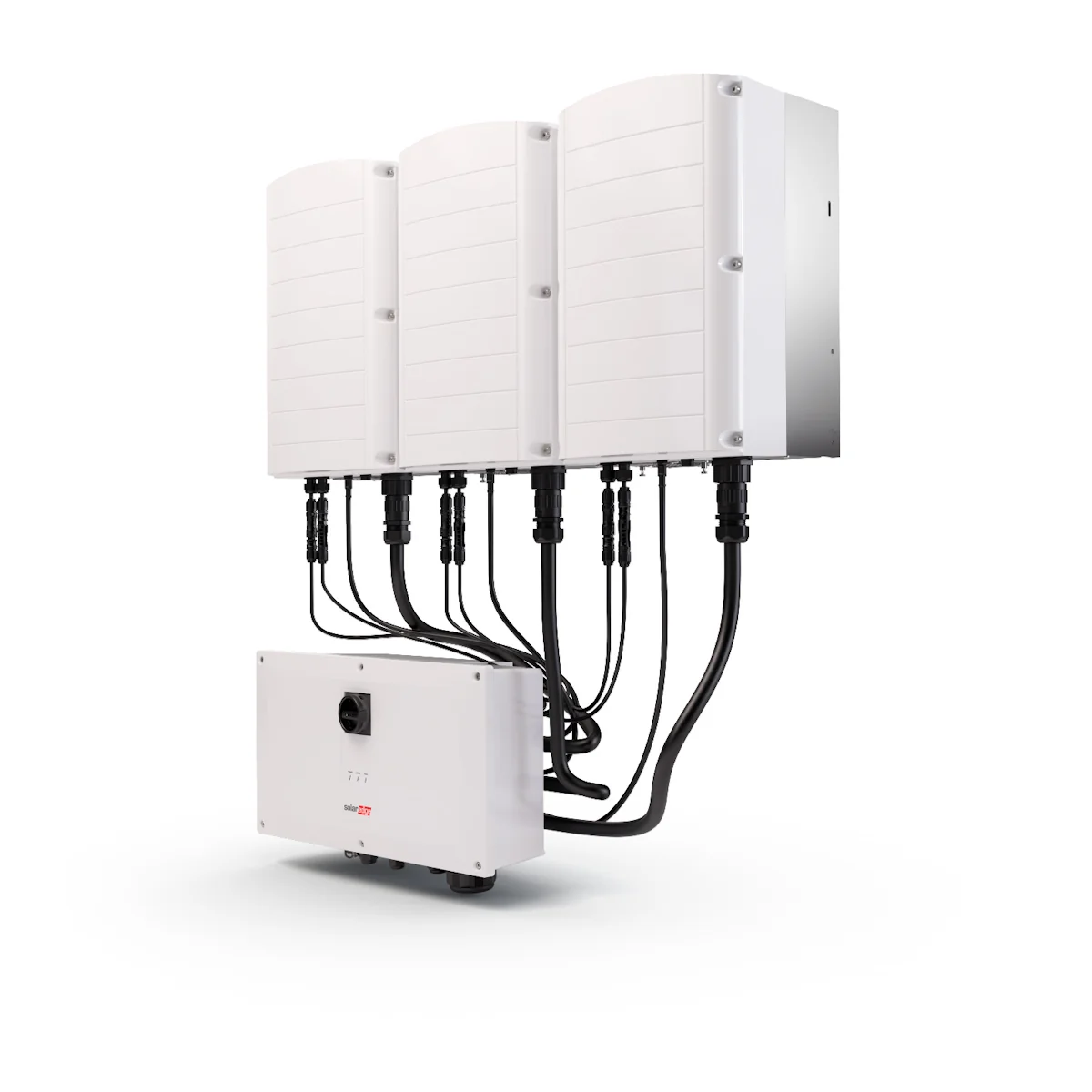

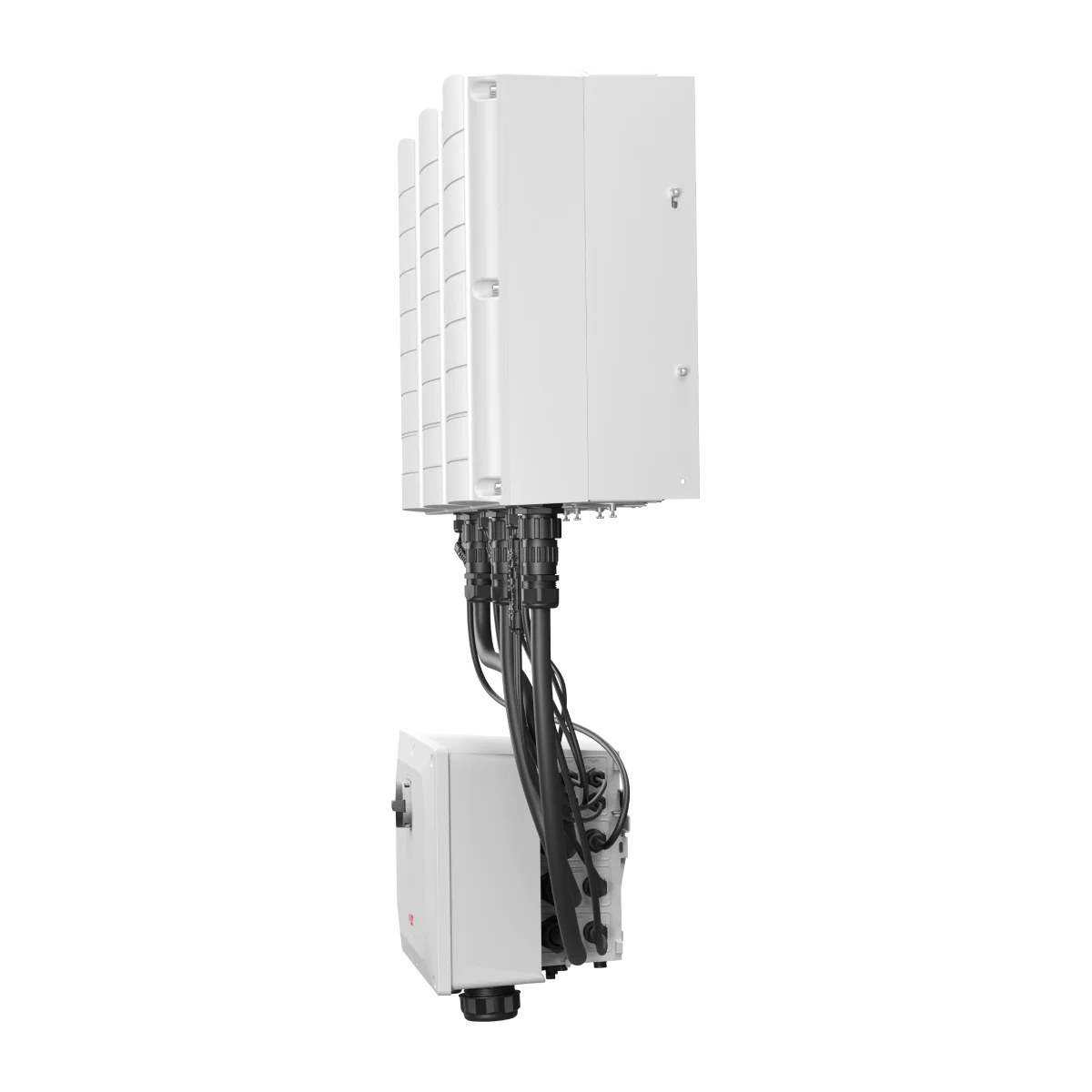

The SolarEdge Synergy Secondary Unit with Rapid Shutdown Device (RSD) is a critical component for commercial and large-scale residential solar inverter systems utilizing SolarEdge’s Synergy technology. This unit works in tandem with the primary inverter to optimize three-phase power conversion while providing enhanced safety features such as rapid shutdown for emergency disconnection.
Key Features
- Synergy Technology Integration: Designed for latest SolarEdge commercial three-phase Synergy inverters, enhancing system scalability and performance.
- Rapid Shutdown Device (RSD): Enables fast, safe power shutdown in emergency situations or maintenance, meeting stringent safety codes and regulations.
- Modular Design: Secondary units connect seamlessly with primary units to form flexible inverter capacities (e.g., 2 or 3 secondary units per inverter depending on power rating).
- Advanced Safety: Incorporates built-in arc fault detection, thermal sensors, and surge protection to maximize system safety and reliability.
- Easy Maintenance: User-accessible design for quick servicing and replacement without system downtime.
- Robust Build: Weather-resistant enclosure (NEMA 3R rating) suitable for indoor or protected outdoor installation.
- Comprehensive Monitoring: Full system visibility through SolarEdge monitoring platform enables proactive management and troubleshooting.
- Wide Operating Range: Temperature-rated from -40°C to +60°C ensuring performance in diverse environments.
Technical Specifications
| Feature | Specification |
|---|---|
| Model | SE-SYNERGY-RSD |
| Unit Type | Synergy Secondary Unit with Rapid Shutdown Device |
| Compatible Inverters | SolarEdge 3-phase Synergy Inverter Series |
| Maximum DC Power | Up to 67,500 W |
| Maximum AC Power (5 min / peak) | 49,990 W / Up to 70 kW peak |
| Input DC Connections | 4 x MC4 pairs |
| AC Connections | 3-phase |
| Enclosure | NEMA 3R (weather resistant) |
| Dimensions (HxWxD) | 558 x 328 x 273 mm |
| Weight | 32 kg |
| Operating Temperature | -40°C to 60°C |
| Warranty | Typically 12-20 years (manufacturer dependent) |
Part Number: SE-SYNERGY-RSD
The SolarEdge Synergy Secondary Unit with Rapid Shutdown Device is essential for building safe, scalable, and high-performance solar inverter solutions with enhanced safety features and modular design. It supports flexible system growth while exceeding international safety standards and enabling advanced system diagnostics and monitoring.
