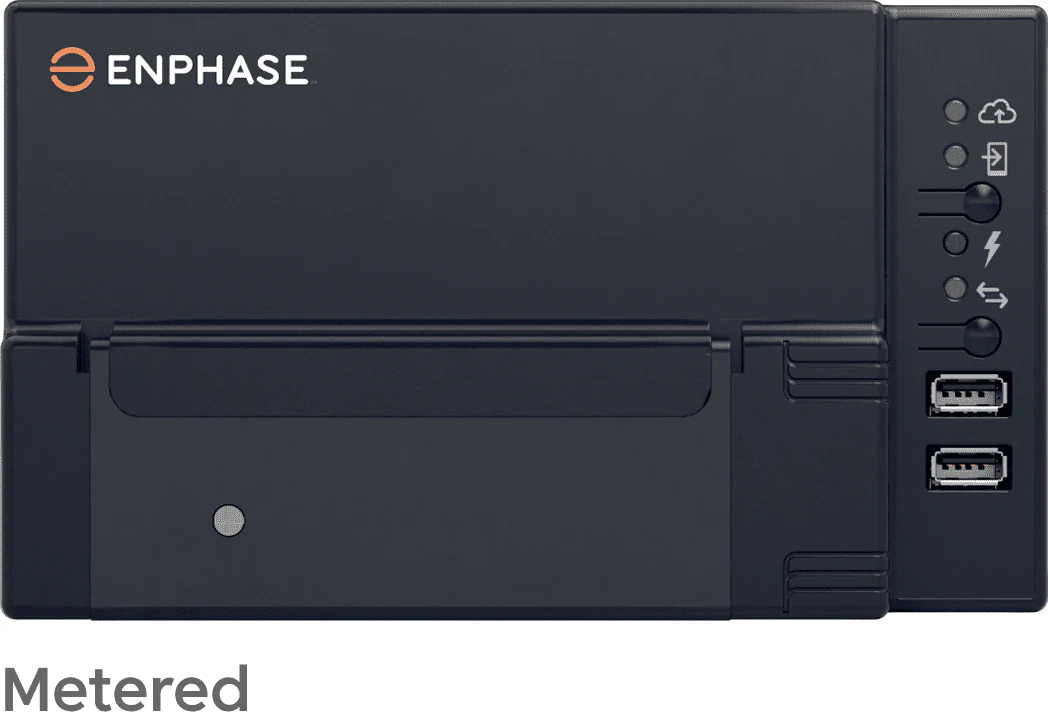

The Enphase Envoy-S Metered is the communication gateway and control centre for Enphase microinverter systems, enabling comprehensive energy management for both single-phase and multi-phase (three-phase) installations. Bridging communications from rooftop microinverters to the Enphase App and the Enlighten Cloud, Enphase Envoy-S Metered provides real-time solar generation and energy consumption monitoring, allowing installers and homeowners to track performance, receive remote software updates, and optimise energy use.

• Full Energy Visibility: Monitors solar production and whole-home consumption with included or optional current transformers (CTs).
• Remote Monitoring & Control: Enables web-based system insights, alerts, and diagnostics through the Enphase App and Enlighten portal.
• Bidirectional Communication: Supports remote upgrades and load management for smart grid participation and future expandability.
• Flexible Networking: Connects via integrated Wi-Fi, Ethernet, or optional Enphase Mobile Connect cellular modem.
• Supports Export Limiting: Enables zero-export and power feed-in limitation for compliance with grid regulations.
• High System Capacity: Supports up to 600 compatible microinverters per Envoy-S.
• Easy Setup: Configurable via the Enphase Installer Toolkit mobile app.
• Reliable System Design: Hardwired device with indoor or protected outdoor mounting options. Backed by a 5-year warranty.

Key Technical Specifications

Compatible Microinverters	M Series, S Series for Envoy-S Metered IQ Series for IQ Gateway Metered (see below for IQ Gateway IQ8 compatibility)
Supported Phases	Single-phase and multi-phase (three-phase)
Capacity	Up to 600 microinverters
Power Supply	230 VAC or 400Y/230 VAC, 50 Hz
Environmental Rating	IP30 (indoor) or IP54 (if enclosed and protected)
System Dimensions	213 x 126 x 45 mm
Weight	0.5 kg
Operating Temperature	-40°C to 65°C
Communication	Powerline from microinverters, Wi-Fi/Ethernet/cellular to internet
Networking	Wi-Fi 802.11 b/g/n, Ethernet, optional Enphase Mobile Connect modem
Metering Accuracy	Production: ±0.5%, Consumption: ±2.5%
USB Ports	Two USB 2.0 (auto-sensing, for accessory connections)
Typical Power Consumption	5 W
Warranty	5 years

Variations and Accessories

• Envoy-S Metered Kit: Includes the Envoy-S, one production CT, and two consumption CTs for three-phase systems.
• IQ Gateway Metered: For Enphase IQ Series microinverters, offering similar features, compact form factor, remote upgrades, and consumption/production monitoring via CTs.
• Optional: Enphase Mobile Connect (cellular modem), Q-Relay for mechanical grid protection (where required).

Applications

• Residential and commercial solar PV systems
• Installations needing module-level monitoring and accurate consumption/production analytics
• Projects requiring grid export limitation or complex phase layouts
• Compatible with M, S, and (via IQ Gateway) IQ Series systems

What's Included?

• 1 × Enphase Envoy-S Metered (single-phase or three-phase model)
• 1 × Production CT (200 A)
• 2 × Consumption CTs for three-phase systems
• Mounting hardware and installation guide
