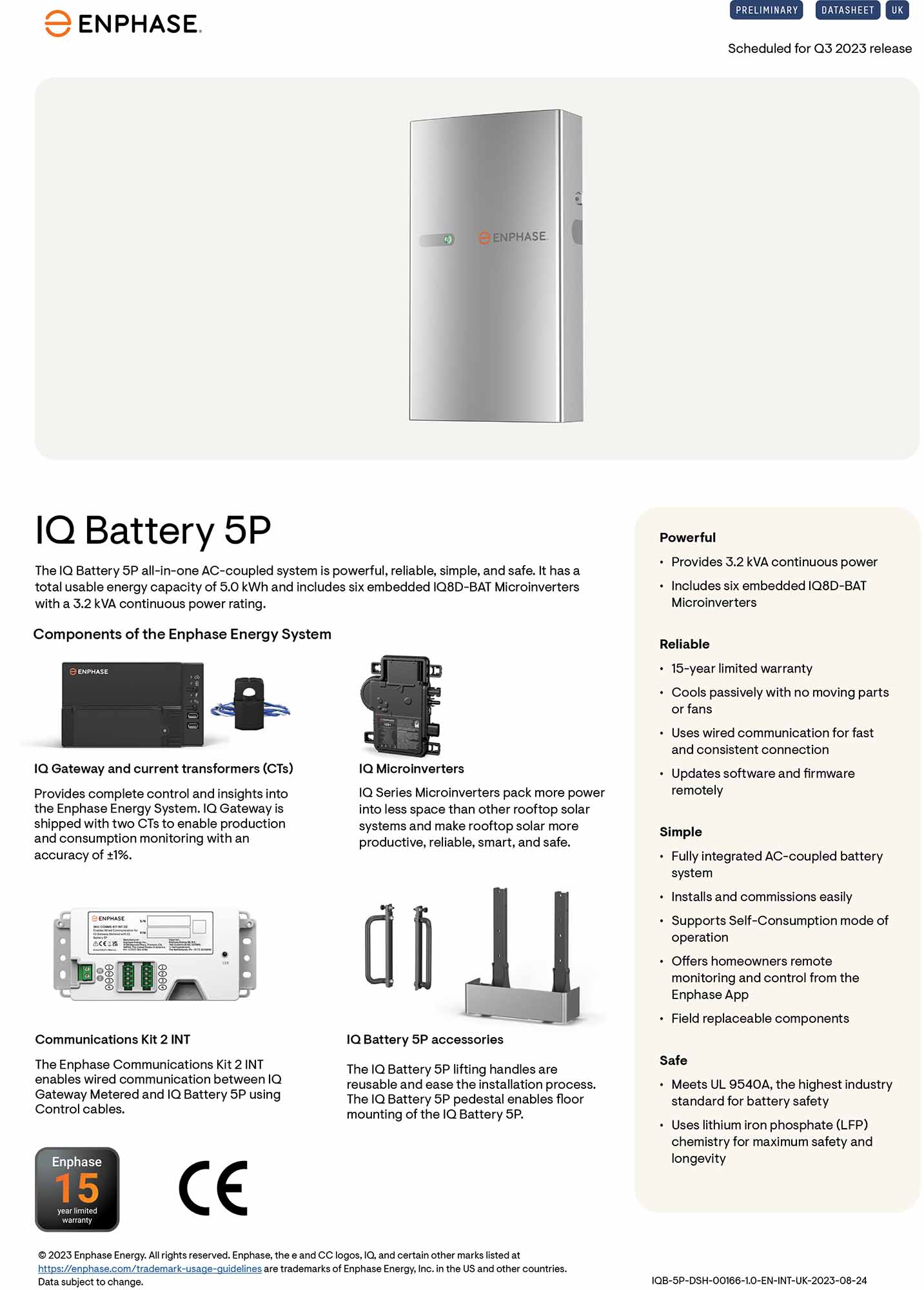

Enphase IQ Battery All in One Bundle 5P

The Enphase IQ Battery All in One Bundle 5P – New Package is a fully integrated AC-coupled storage system, ideal for new solar-plus-storage installations. This bundle features the IQ Battery 5P (5.0 kWh usable), six embedded IQ8D-BAT microinverters, and all necessary mounting and communication accessories, delivering powerful, reliable, and safe energy storage for residential and small commercial applications.

Enphase IQ Battery Key Features

• Usable energy capacity: 5.0 kWh
• Six embedded grid-forming IQ8D-BAT microinverters
• Continuous output power: 3.84 kVA (16.7A at 230V)
• Peak output: 7.68 kW (3 seconds), 6.14 kW (10 seconds)
• Stable lithium iron phosphate (LFP) chemistry for maximum safety and longevity
• 100% depth of discharge (DoD)
• DC round-trip efficiency: 96%
• AC round-trip efficiency: 90%
• Passive cooling (no moving parts or fans)
• Field-replaceable components for easy maintenance
• Remote monitoring and control via the Enphase App
• Supports backup, self-consumption, and time-of-use (TOU) modes
• Quick plug-and-play installation (wall-mount bracket included; floor-mount pedestal optional)
• Wired communication for fast, reliable connection
• 15-year limited warranty (up to 6,000 cycles)
• Meets UL 9540A safety standard
• Includes all required mounting and communication accessories
• Enphase University certification required for commissioning

Enphase IQ Battery Technical Specifications

• Usable Capacity: 5.0 kWh
• Continuous Output Power: 3.84 kVA (16.7A at 230V)
• Peak Output Power: 7.68 kW (3 sec), 6.14 kW (10 sec)
• Nominal Voltage: 230 VAC
• Nominal Frequency: 50 Hz
• Battery Chemistry: Lithium Iron Phosphate (LFP)
• DC Round-Trip Efficiency: 96%
• AC Round-Trip Efficiency: 90%
• Depth of Discharge: 100%
• Operating Temperature Range: –20°C to +55°C
• Mounting: Wall-mount (included) or floor-mount (optional pedestal)
• Dimensions (W × H × D): 550 × 980 × 188 mm
• Weight: 78.9 kg
• Protection Rating: IP55
• Warranty: 15 years (up to 6,000 cycles)

Bundle Contents

• 1 × Enphase IQ Battery 5P (5.0 kWh usable)
• 6 × IQ8D-BAT microinverters (embedded)
• 1 × Wall-mount bracket
• 1 × Communications Kit
• All required cabling and installation accessories

Applications

• New residential and small commercial solar-plus-storage systems
• Backup power and self-consumption optimisation
• Time-of-use and grid services participation
