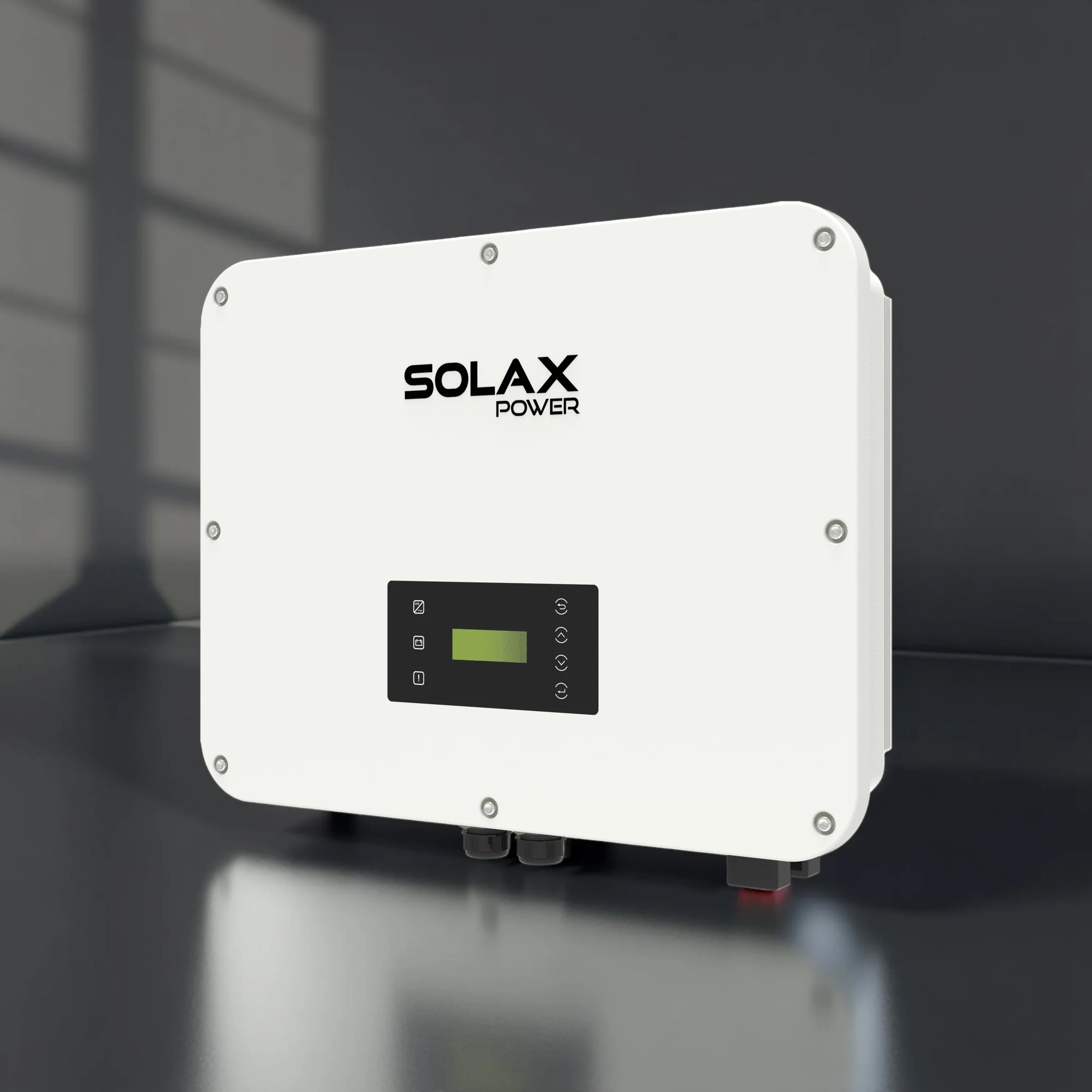

SolaX X3 Ultra 25kW Three Phase Hybrid Inverter
SolaX X3 Ultra 25kW Three Phase Hybrid Inverter
The SolaX X3 Ultra 25kW Hybrid Inverter is a cutting-edge three-phase hybrid solution for large commercial, industrial, and high-demand residential solar-plus-storage systems. With advanced AI-driven energy management, ultra-high efficiency, and robust flexibility, this inverter is designed for maximum solar harvesting, intelligent power optimization, and seamless integration with modern smart loads and energy storage.
Key Features
- 25kW hybrid inverter with maximum output power up to 27.5kW
- Supports up to 200% PV oversizing (max. DC input power: 50,000W)
- 3 independent MPPTs, 6 PV strings, each MPPT supports up to 36A
- Wide MPPT voltage range: 160–950V (start-up voltage: 200V)
- Max. DC input voltage: 1000V
- 100% unbalanced output support across three phases
- Max. battery voltage: 800V (battery voltage range: 180–800V)
- Max. battery charge/discharge current: 60A (2 × 30A)
- EPS backup output with 200% overload for 10s; UPS-level switchover time <10ms
- On-grid, off-grid, and microgrid operation; parallel up to 10 units
- AI-driven energy management and smart load control (EV charger, heat pump, etc.)
- Fanless, silent operation with IP66-rated enclosure for indoor/outdoor use
- Type II SPD on both AC & DC sides, optional AFCI protection
- Built-in WiFi for remote monitoring and management
- Ultra-high efficiency up to 99.7%
- Dimensions: 696 × 529 × 240 mm; Weight: 47 kg
- Compatible with SolaX Triple Power high-voltage battery systems
- G100/G99 grid approval
- Warranty: 5 years standard
SolaX X3 Hybrid Inverter Technical Specifications
- Max. Output Power: 27,500W
- Max. DC Input Power: 50,000W
- Max. DC Input Voltage: 1000V
- MPPT Voltage Range: 160–950V
- Start-up Voltage: 200V
- Max. DC Current (per MPPT): 36A
- Total Max. Current: 39.9A
- Phases: 3 (Three-phase)
- Max. Efficiency: 99.7%
- IP Rating: IP66
- Weight: 47 kg
- Dimensions: 696 × 529 × 240 mm
- Communication: Integrated WiFi, Modbus, RS485, digital I/O
SolaX X3 Hybrid Inverter Applications
- Commercial and industrial solar-plus-storage systems
- Large residential projects with high energy demand
- Microgrid and off-grid installations
- Smart load and VPP/grid services participation
$1,982.90
Original: $5,665.43
-65%SolaX X3 Ultra 25kW Three Phase Hybrid Inverter—
$5,665.43
$1,982.90Product Information
